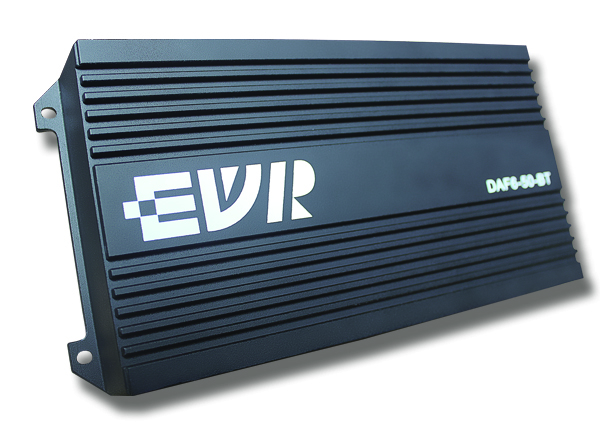

DAF6-50-BT  DIGITAL AMPLIFIER

6ch class-D car amplifier

● 4 ohms RMS output power: 6×50W

● Distortion (THD): 0.1%

● Frequency response: 10Hz to 22KHz

● Signal to noise ratio: >80dB

● Stereo separation:  >50dB

● Input sensitivity: 0.3V to 6V

● Dimensions: W117*L230*H40(mm)

DAF4-100-BT  DIGITAL AMPLIFIER

4ch class-D car amplifier

● 4 ohms RMS output power: 4×100W

● Distortion (THD): 0.1%

● Frequency response: 10Hz to 22KHz

● Signal to noise ratio: >80dB

● Stereo separation:  >50dB

● Input sensitivity: 0.3V to 6V

● Dimensions: W117*L230*H40(mm)

DAF6-100-BT  DIGITAL AMPLIFIER

6ch class-D car amplifier

● 4 ohms RMS output power: 6×100W

● Distortion (THD): 0.1%

● Frequency response: 10Hz to 22KHz

● Signal to noise ratio: >80dB

● Stereo Separation:  >50dB

● Input Sensitivity: 0.3V to 6V

● Dimensions:W150*L230*H40(mm)

DAF-BT  DIGITAL AMPLIFIER

8CH DSP Process Car Pre-Amplifier

● Output:2V

● Distortion (THD): 0.1%

● Frequency response: 10Hz to 22KHz

● Signal to noise ratio: >80dB

● Stereo separation:  >50dB

● Input sensitivity: 0.3V to 6V

● Dimensions: W140*L100*H30(mm)

General Specifications

● Input mode: Bluetooth/AUX/4CH/Optical

● Bluetooth 4.1 with smart phone APP control

● Duo-core 432MHz 32bit DSP audio processor

● Support Dolby and DTS

● 7 Band GEQ

● 10 Band PEQ

● High performance ADCs: 108 dB SNR

● High performance DACs: 110 dB SNR
